Doughty Eye Nuts
Product Code:
Doughty Steel Eye Nuts provide dependable threaded lifting and attachment points for professional entertainment, theatre and studio applications. Conforming to DIN 582, the standard range includes M6, M8, M10 and M12 threads with respective WLLs of 70kg, 140kg, 230kg and 340kg. M6 and M8 models are supplied in silver, while the M10 and M12 versions are available in either silver or black.

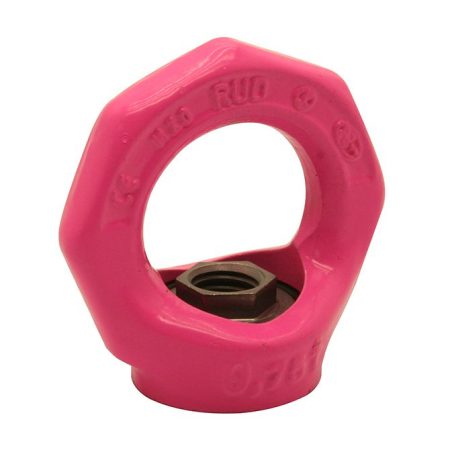

For higher-load applications, Doughty offers a tested M12 Large Eye Nut with a 500kg WLL in silver, black or red. The articulated M12 Pink Eye provides an increased 750kg WLL and can accommodate unfavourable load directions that are not permitted with standard DIN 580 eye fittings. Manufactured from high-tensile forged material and tested in accordance with EN 1677-1, it is compatible with Doughty clamps accepting M12 fixings and should be installed using a suitable 10.9-grade bolt.
