SIXTY82 TPM39S Black Middle Beam | Straight lengths

Select Product
Product Code: SIX143602
TPM39SMB Truss Series

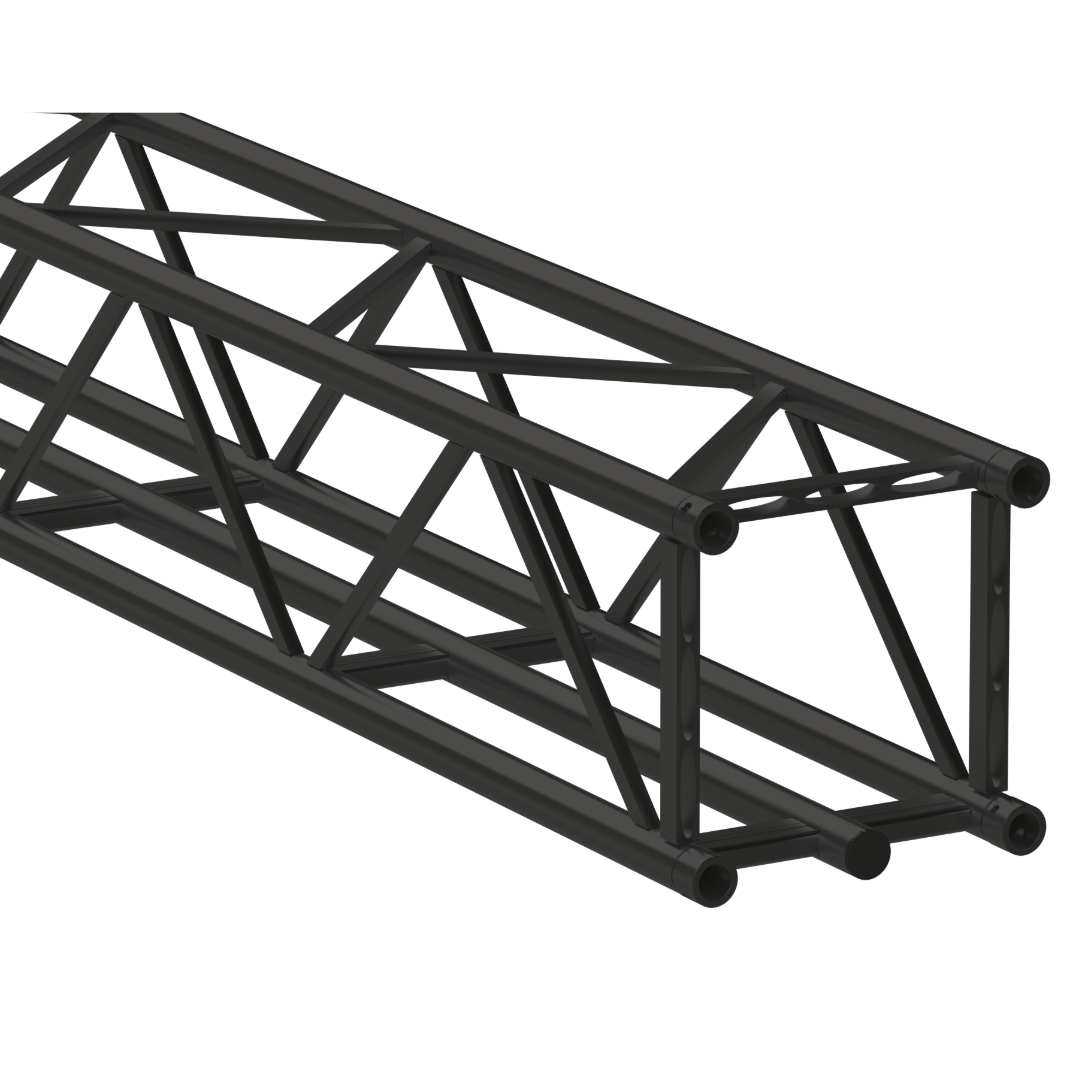

SIXTY82 TPM39SMB Middle Beam truss is the same dimensions as standard TPM39S but with an additional middle beam on one face. Typically used in applications where the load needs to be centred (in a similar way to triangular truss) but where more capacity is needed for higher loads or greater spans.

TPM39SMB can be connected in-line with standard 39cm trusses and is compatible with standard TPM39S corners and accessories.

Key features of TPM39 range:
  • Up to 25% stronger than other M trusses
  • 100% compatible with existing M39 systems
  • 48.3 x 3mm main tube material for strength & durability
  • Optimized load-bearing with improved diagonal bracing
  • Smash & bounce-proof end frame
  • Available in black or custom powder coat finishes
  • Compatible with previous generation M-Series trusses
  • Compatible with a wide range of corners & accessories
Contact us for more information and availability

Connectors

Options

Accessories

TPM Series Features

Technical Video

Watch below to see some of the technical details of the TPM series truss

TPM Spigot

An additional key improvement we have made to our TPM truss sytem is the change in alloy for the truss spigots. By switching to a stronger alloy, we have been able to increase the strength of the truss.
The new spigot is easily distinguishable from the old spigot because of the changed recessed identification line. These new spigots, along with other optimizations in our production process, have allowed us to offer a product that is up to 25% stronger and more reliable than ever before.

Find your M-series connectors now

Interchangable

With 100% backwards interchangeability, the TPM truss can be seamlessly integrated into any M truss series setup without any problems. In cases where both truss types are used, customers can simply use the loading tables of the M truss for safe and reliable operation.

This backwards interchangeability means that our customers can enjoy all the benefits of the new TPM truss without having to worry about compatibility issues. It's the perfect solution for anyone looking to expand their M truss series and take advantage of the latest innovations in truss technology.
