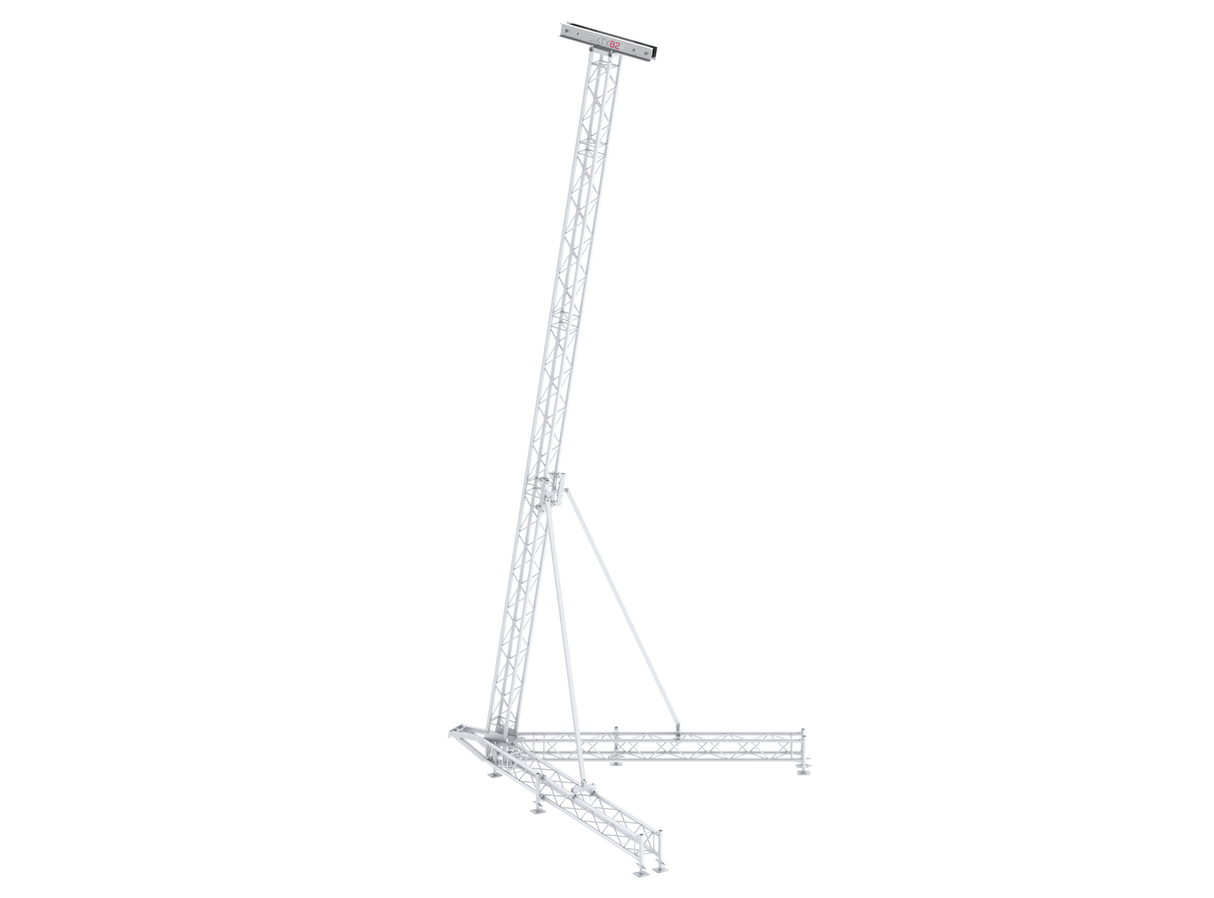

SIXTY82 Towers | V Tower

The improved design of the diagonal braces helps to increase the strength and stability of the truss system. By optimizing the shape and dimensions, the diagonal braces are able to provide better support and withstand higher forces. This helps to improve the overall strength and performance of the truss, making it more effective at supporting heavy loads.

The use of the extruded end frame contributes to the improved strength and performance of the truss system. By using extruded end frames, the TPM Truss is able to withstand more load without deforming or failing.

In addition to the improved strength, the TPM Truss Series is 100% square and has a perfect fit. This is because the extruded end frames are more precise and uniform in shape, which allows them to more easily and securely attach to other truss components. This can help to improve the stability and strength of the overall truss system, and reduce the risk of failure due to poor connections.

The removal of the end diagonal allows the inside of the truss to be used for storage and makes it very easy to place uplighters in the truss without the end diagonals interfering.

TPM Trusses have been designed to be fully back-compatible with their M29 predecessor utilising the M00 conical connector with a new, stronger pin.

All TPM trusses come as standard with 3mm thick main chords made from 6082 T6 grade aluminium making it ideally suited for heavy-use applications such as rental.
