Doughty Hanging Clamps

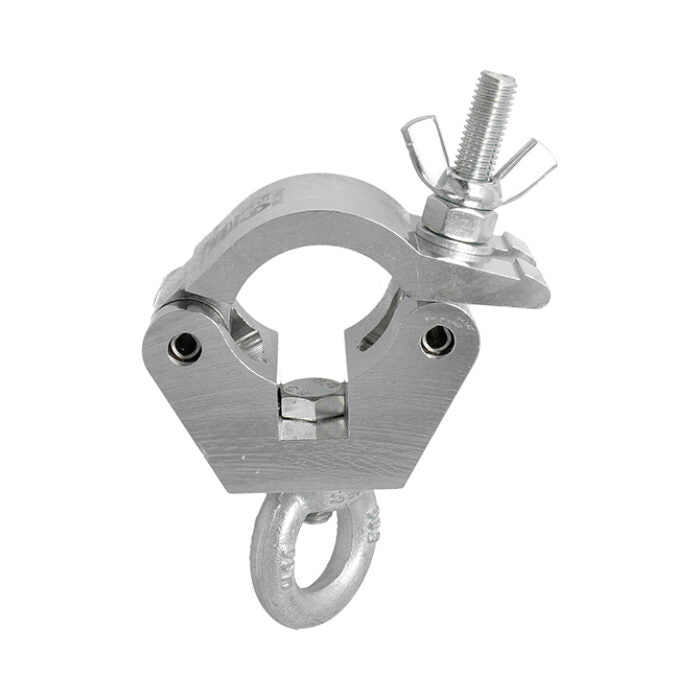

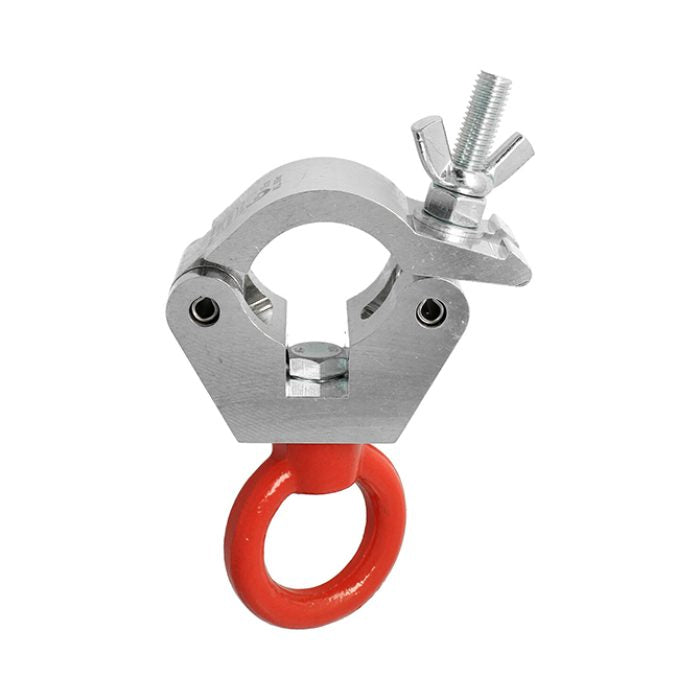

Doughty Hanging Clamps provide a strong, purpose-built suspension point for loads attached to truss or tube. Manufactured from high-tensile extruded aluminium, each 50mm-wide half coupler fits 48–51mm diameter tube and is factory fitted with an eye nut. The range offers working load limits of 340kg, 500kg and 750kg, providing a suitable option for a variety of professional rigging applications.

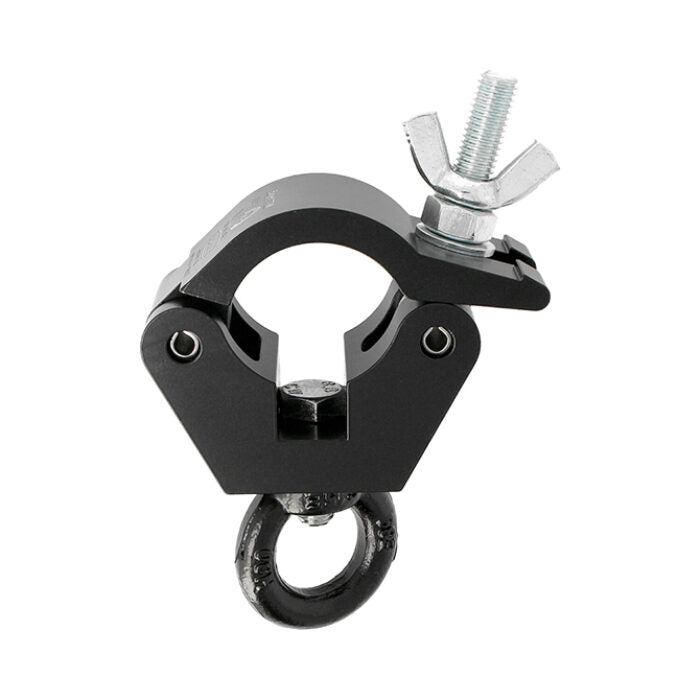

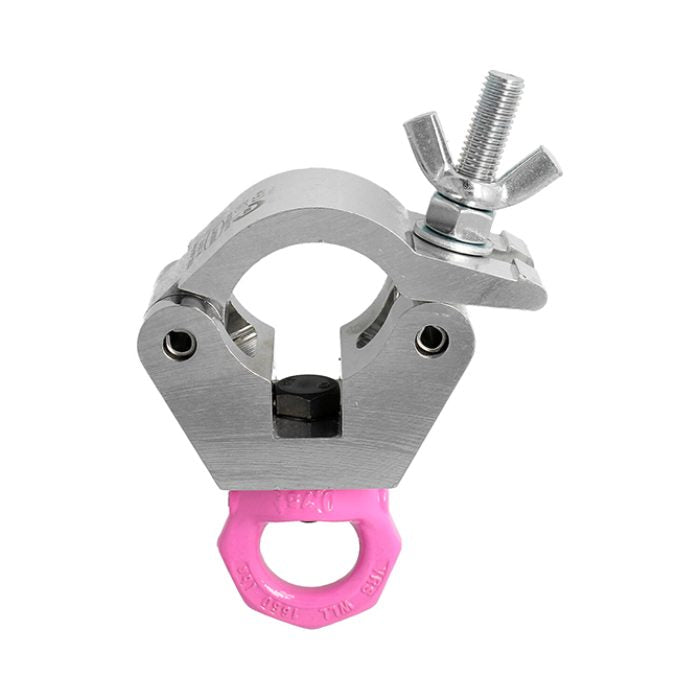

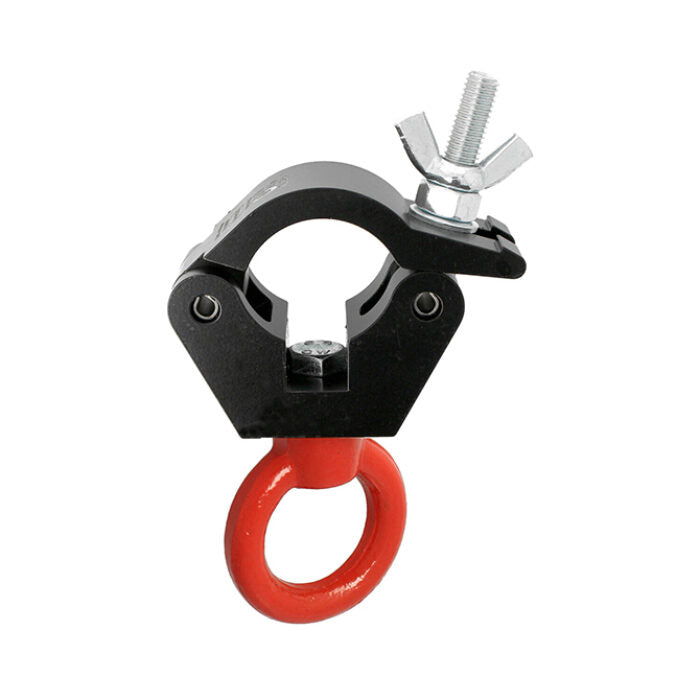

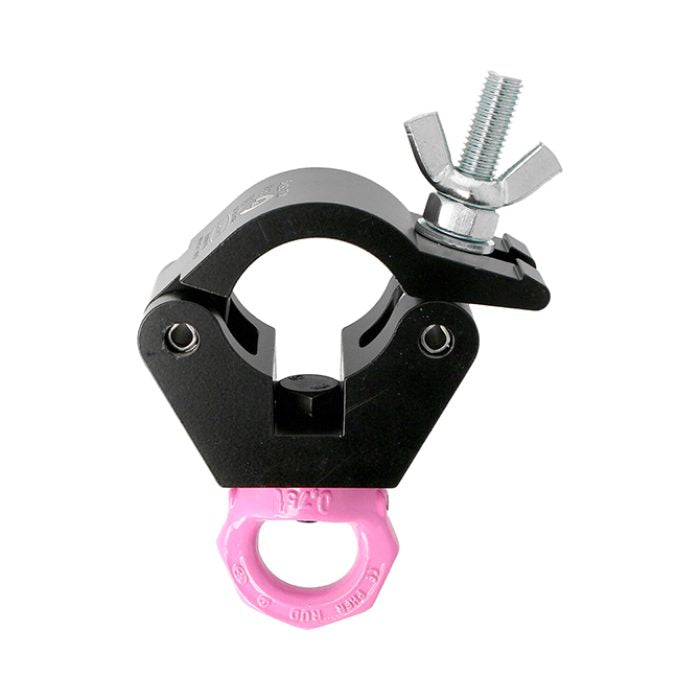

For more demanding applications, the 750kg version features an articulated RUD Pink Eye that can be positioned through 360° and used in less favourable loading directions. All three versions are TÜV approved, designed to grip securely without damaging truss chords, and available in either polished silver or powder-coated black—dependable rigging hardware built for the entertainment industry.
